Minimizes frame elements and allows openings up to 6 meters without vertical profiles, maximizing natural light flow.
Thanks to the vertical retracting system, it doesn’t take up any space when opening or closing.
Improved insulation lowers energy costs, making it the ideal choice for both residential and commercial projects.
The system is fully motorized, enabling easy control via a remote or mobile app.
MAX(GUL) | MAXI(GUM) | MAXI FASADE (GUF) | MAXIMA (GUG) |
|---|---|---|---|
Cost-effective system, where extreme thermal insulation is not a priority, and cost is! | Residential & Commercial use, excellent weather & thermal performance | Curtain wall, Residential & Commercial use, excellent weather & thermal performance
| Screw drive system for large span & heavy weight glazing, excellent weather & thermal performance
|

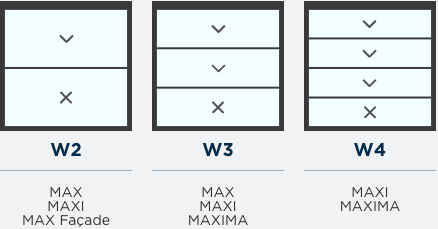

2 or 3 frames (50%, 66% opening) for Window, Door or Countertop | 2, 3 or 4 frames (50%, 66% or 75% opening) for Window or Door
| 2 configurations (50% opening) for Window or Door
| 4 configurations, 3 or 4 frames (66% or 75% opening) for Window or Door |
Sizes 3.6m width x 3.6m in height, operable frame weigh up to 190kg | Sizes 5.0m width x 5.0m in height, operable frame weigh up to 660kg
| Sizes 6.0m width x 4.5m in height. Operable frame weigh up to 550kg
| Sizes 6m width x 5m height, operable frame weigh up to 1000kg
|
New or retrofit installation with ease
| New or retrofit installation with ease
| New or retrofit installation with ease
| New or retrofit installation with ease |
Non-thermally broken structural and window frames | Thermally broken structural, motor box, and window frames | Thermally broken structural, motor box, and window frames | Thermally broken structural, motor box, and window frames |
Frames will accept Single or IG of up to 20mm
| Frames will accept Single or IG of up to 32mm
| Frames will accept IG of up to 38mm, 1.3(W/m2K) with 0.8Ug triple glass option
| Frames will accept IG of up to 38mm, 1.3(W/m2K) with 0.8Ug triple glass option
|
Maximum Size : 3.6m x 3.6m | Maximum Size : 5.0m x 5.0m | Maximum Size : 6.0m x 4.5m | Maximum Size : 6.0m x 5.0m |
Capacity: Up to 190kg (419 lb) | Capacity: Up to 660kg (1450 lb) | Capacity: Up to 550kg (1210 lb) | Capacity: Up to 1000kg (2200 lb) |
Top fixed, others retracting up and down
Bottom fixed, others retracting up and down
